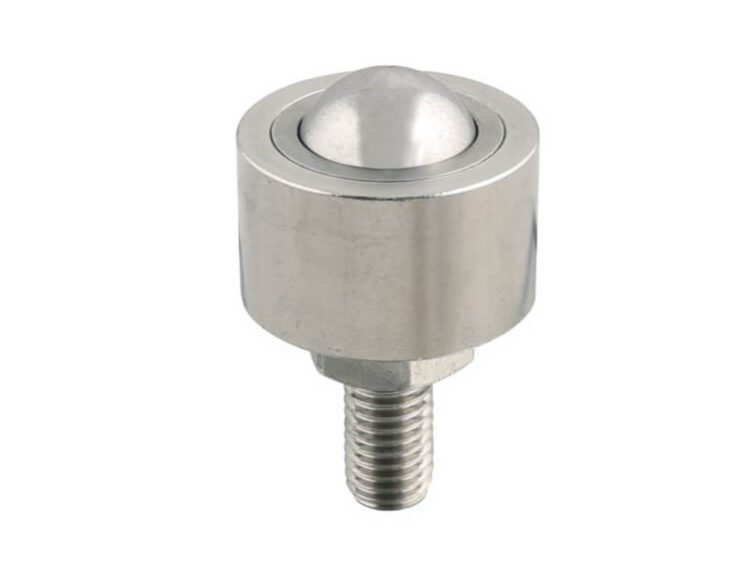

R405 Stainless Ball Transfer Units With Stud

  • Item Type: Ball Transfer Units
  • Material: Stainless steel/Steel
  • Finish: Polish/Black oxide
  • Tolerance: +/-0.01mm ~ +/-0.001mm or as per client’s needs
  • Surface Roughness: Ra 0.1~3.2 or as per client’s needs
  • MOQ: No MOQ, Your small order is also acceptable
  • Additional Service: Assembly, Logo engraving, Special package

Your Best Ball Transfer Units Supplier In China

Are you looking for ball transfer units? You’ve come to the right place!

The ball transfer systems find use on guillotines, press brakes, metrology instruments, for conveying materials in clean rooms and miniature instruments, as well as cargo handling and conveyor systems.

The material of ball transfer units available in either chrome or stainless steel, ball transfer units ensure loads can be moved smoothly and with minimal effort in multiple directions.

The ball transfer bearings used face up so that goods may be moved across them, but are also used face-down in some circumstances. We offer a number of different types of fitting, including push-fit roller transfer unit, flange mounted ball transfer, Saturn type, and internal thread options.

Choose the most appropriate type at the relevant tolerance and Roche industries can then also offer spring-loaded ball transfer units to fit your price range.

If you are looking for heavy-duty ball transfer units and have detailed requirements ideas in mind, our design team will be here to help you.

Welcome to send us your inquiry now as below button.

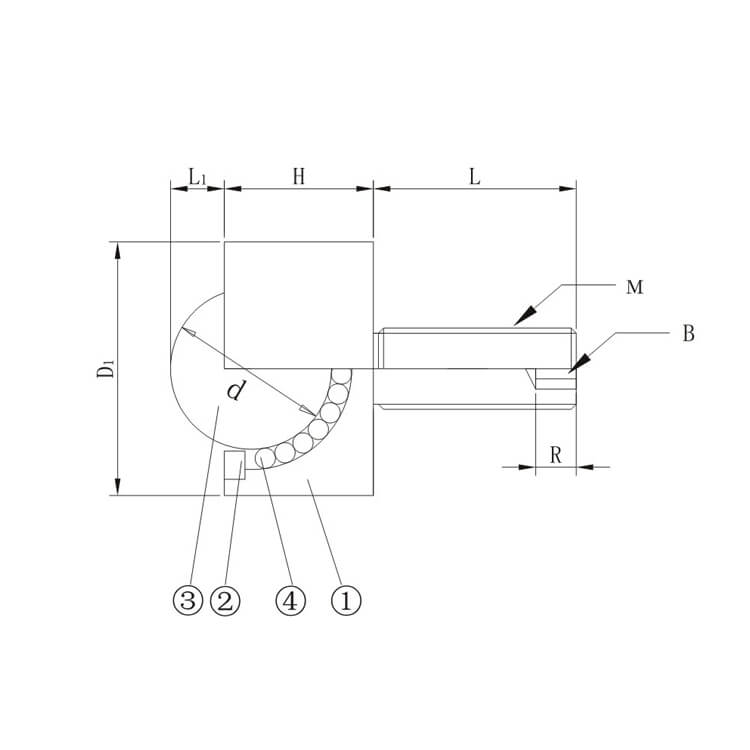

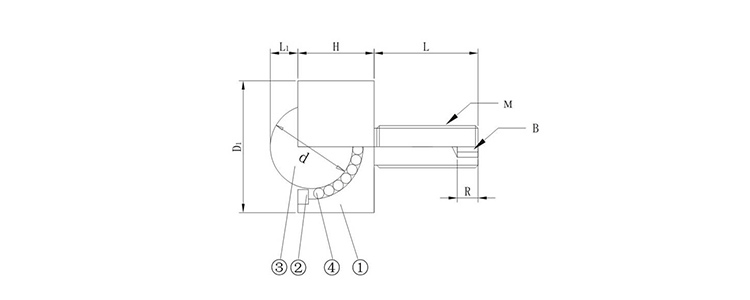

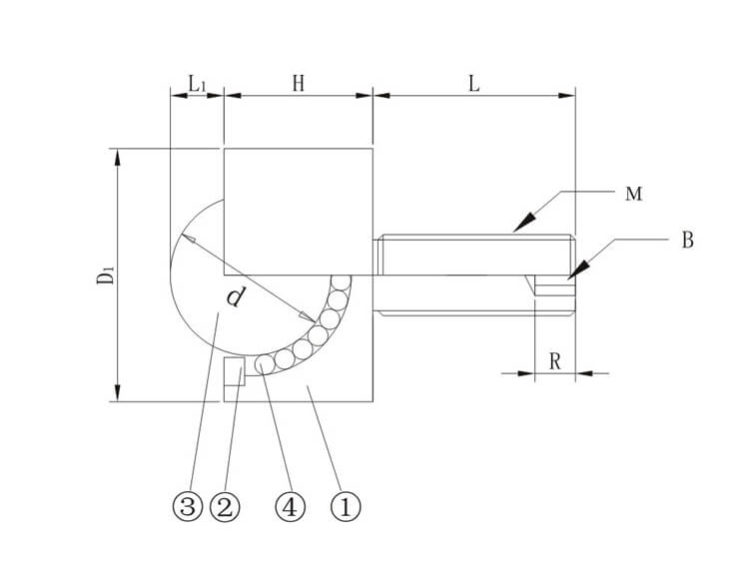

D1 L1 H M L d B R Load(N )
12 1.5 6.5 6 15 5.56 3 3.5 41
16 2.5 9.5 8.73 55
19 3.5 11.5 8 20 10.32 4 5 62
25 5.3 14.7 15.87 343
31 6.3 18.7 10 25 19.05 5 6 412
